IP65 Connecteur 2-3 voies Bo?te de d?rivation 2024 de c?ble ?tanche Bo?te de jonction

This is the list for 1xIP65 junction box. tag.

IP65 2-3-Way Connector Waterproof Cable Junction Box

Characteristics

• IP65 junction box waterproof and dustproof, UV sun protection and rain protection
• Suitable for quick connection to outdoor lighting and external wiring

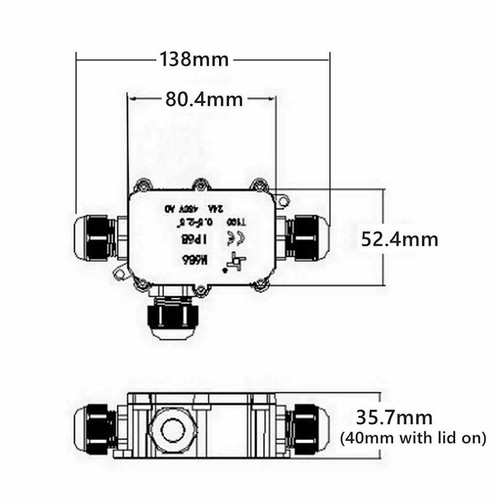

• Maximum size: 13 * 8 * 4cm; 1 input / 2 outputs
• Current: 16 A; Voltage: 450V; Cable diameter: Ø 4 mm - 8 mm; Terminal blocks: 3 x 1.00 mm². cores in each terminal.
• Color name: Black
• Ideal even IP65 waterproof cable connectors PG9 cable with a diameter of 4-8mm

Characteristics:

• Waterproof junction box, 2/3-way plastic terminal block
• The IP66 level junction box is waterproof, dustproof and can prevent UV.
• It applies to the connection of outdoor lamps and lanterns.
• The wiring is easy to use, more convenient and safer.
• Certifications : VDE, UL, CQC, ROHS

Spécifications techniques:

• Borne appariée : standard P02 - D4/9
• Courant électrique : 16 A Tension : 450 V
• Diamètre du câble : Ø 4 mm - 8 mm

Câble de connexion IP65 étanche :

Caractéristiques:

• Nom du produit : connecteur étanche
• Niveau de protection : IP65
• Matériel: PA/PC
• Certifications : CE RoHS
• Type de connecteur de câble: Vis fixe
• For maximum cable diameter: 5-10.5 mm
• Relative humidity: ≤90%
• The color black
• Operating temperature: -35~120°C
• Storage temperature: -25~85°C
• Air pressure: 86~106KPa
• Widely used in solar panel systems, outdoor LED lamps, electrical wire connections.

The package includes:

• 1 x Waterproof connector
